Installation, Operation, and Maintenance Instructions

1.0 Handling

1.1 Unpack and handle with care to avoid damage to heater and components

1.2 Make sure heater is protected from contamination during storage. A dry environment if preferred.

1.3 Refer to Application Data link for additional information related to heater system design and selection.

2.0 Safety

2.1 WARNING: Make sure power supply is turned off before installation or service of electric heater to prevent electrical shock or damage to equipment.

2.2 WARNING: Circuit should have separate disconnect means which shall be capable of being locked in the open position and also in sight from the heater.

2.3 WARNING: Wiring must conform to the National Electric Code and Local Regulations and should be performed by a qualified electrician. Make sure wiring is of a suitable temperature rating, amperage rating, and the location.

2.4 WARNING: When servicing, handle with caution, the heater surface may be hot.

2.5 WARNING: Do not install heater into a medium or an environment that could result in an explosion, fire, or hazardous condition. Contact Vulcan regarding heaters that are specifically designed for hazardous locations.

3.0 Installation and Operation

3.1 Caution: Make sure the heater supply voltage is the same as the rated heater voltage.

3.2 Caution: Heater should be properly grounded to prevent electrical shock hazard

3.3 Caution: Do not support or suspend heater from termination or wiring

3.4 A common cause of heater failure is contamination of the the internal heater components through the termination end of the heater. Make sure the heater is protected from contamination in the final application.

3.5 Make sure heater termination is not exposed to water or other liquids. Make sure that no dripping from condensation on cold water pipes or other sources can fall on any exposed electrical wiring connections or components.

3.6. Termination’s should be properly tightened and connected to hook-up wiring. A loose connection will result in overheating at the connection and could lead to premature failure. Where possible, use a wrench or pliers to prevent twisting of the terminals during installation.

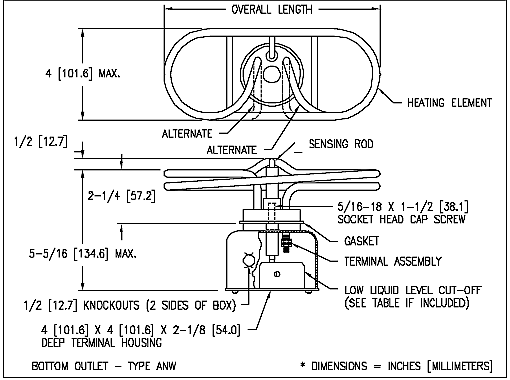

3.7 Bottom Outlet heaters are designed for installation through a 2-7/16″ diameter hole in the bottom of a tank or vessel.

Heater tubes must be covered by water at all times during operation. Care should be taken to avoid air entrapment or pockets of overheated fluid around the heater tubes.

3.8 Center compression bolt with gasket must be properly tightened to ensure a leak tight joint. Check joints for leaks.

3.9 Models with cut-out switch are designed to shut down the heater in event of a drop in water level. Other basic models do not include a switch. System should include a safety device such as an over temperature thermostat or low liquid level cut-out switch. Heater tubes are designed for direct immersion and will fail if operated in air and may cause other damage.

3.10 Heater should be wired performed per diagram supplied with unit or refer to our following website page for common circuits: Common Wiring.pdf

3.11 Do not exceed 105% of rated voltage. Higher voltages result in higher wattage output which could damage the heater, system, or medium heated.

3.12 Models equipped with a low water cut-out thermostat3.12.1 Do not exceed amperage rating of thermostat. The cut-out thermostat included as an option on some models is rated at 30 amps at 300 volts max.

3.12.2 The thermostat is a manual reset type (requires operator to push button in event of an trip condition) 3.12.3 Thermostats are designed for heater control only and are not intended for use as a direct control of motors, pumps, or other devices.

3.12.4 Do not use thermostat as a power disconnection means for the heater assembly.

4.0 Maintenance

4.1 For most applications, no heater maintenance is required.

4.2 Disconnect line switch prior to any testing or work on the heater 4.3 Check heater termination’s after the initial 8 hours and tighten any loose terminal and jumper connections.

4.4 Recheck wiring periodically to ensure wiring has not become damaged, worn, or loose due to vibration or other application related conditions. Tighten, repair, or replace as needed.

4.5 Heater tubes should be checked periodically for scaling or mineral deposits on heater tubes and cleaned as required.

5.0 Trouble Shooting

5.1 WARNING: Disconnect power supply to heater(s) before performing any trouble shooting procedures.

5.2 Check supply voltage to heater to ensure there is power.

5.3 Check wiring circuit- make sure heater is properly wired and all supporting controls, relays, contactors, and other circuit related switches are also properly wired and functional.

5.4 Check heater(s)- No heat due to a heater failure is generally due to an open heater circuit. Check heater resistance across both terminals or leads. A reading of infinity (no continuity) indicates an open circuit within the element and the heater must be replaced.

5.5 Longer than normal heat up time for units with more than one heating element may be the result of an individual heating element failure.
